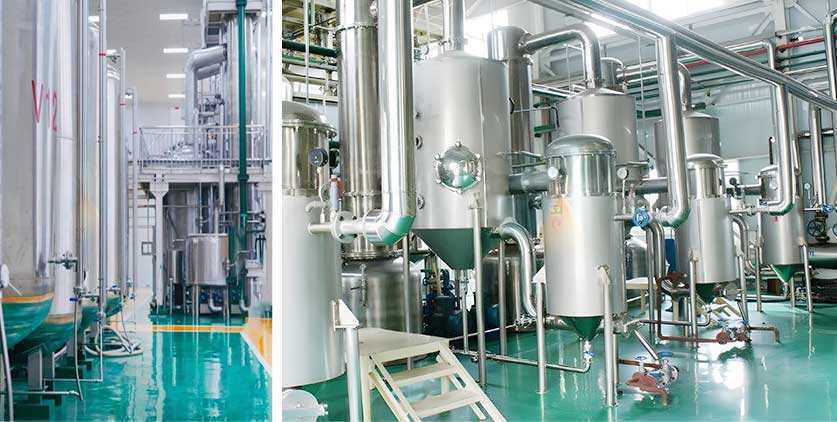

Wheat flour gluten extraction equipment

Introduction and Features of Wheat Starch Gluten Extraction Equipment

Huatai can provide turnkey projects with an annual production capacity of 5,000 to 20,000 tons of gluten. Huatai’s wheat starch gluten extraction equipment features readily available raw materials, simple processing, reasonable pricing, and customizable features.

Gluten (also known as active gluten flour or wheat gluten) is a natural plant protein extracted from wheat or high-gluten flour. Produced through physical separation technology, it boasts a protein content of 75% to 85% and contains 15 essential amino acids (such as lysine and methionine). It is a high-protein, low-fat nutritional supplement widely used in the food industry and enjoys promising market prospects.

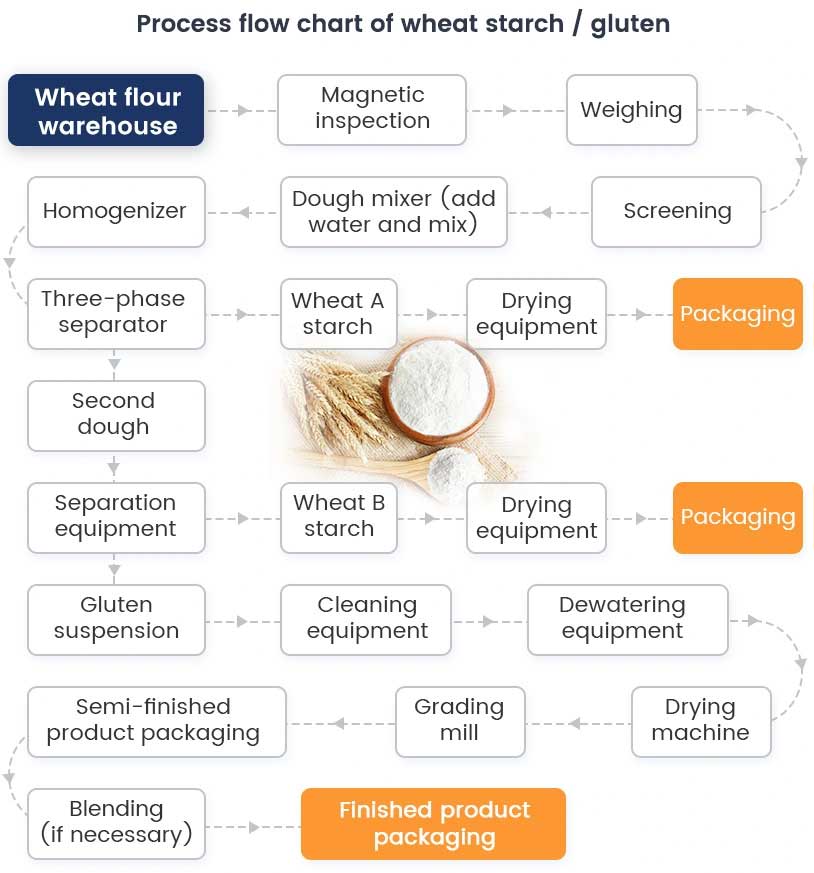

Process flow chart of wheat flour to extract gluten

The process is described as follows:

1. Raw Material Preparation: Wheat flour is removed from the wheat flour warehouse and first subjected to magnetic inspection to remove magnetic impurities. It is then weighed and screened to ensure quality and accurate measurement.

2. Water-Flour Mixing: The screened wheat flour enters a dough mixer, where warm water (typically a 1:1 ratio of water to flour) is added. The temperature is controlled between 43.5-46°C and the pH is between 6.5-7.0. Mixing is then completed to form a batter.

3. Homogenization: The batter enters a homogenizer to fully separate and evenly distribute components such as protein and starch.

4. Three-Phase Separation: The homogenized batter enters a three-phase separator to separate wheat starch A, a secondary batter, and light phase substances such as pentosans.

5. Secondary Separation: The secondary batter enters a separator for further separation to produce a suspension of wheat starch B and gluten.

6. Gluten Processing: The gluten suspension is first cleaned in a washing machine and then dehydrated in a dehydrating machine. It is then dried in a dryer at a specific temperature. The dried gluten is then ground in a grading mill to the specified particle size. The semi-finished product is then packaged and blended as needed before the finished product is packaged.

Starch Processing: Wheat Starch A and Wheat Starch B are dried in separate drying machines. The dried starches are then packaged to produce the corresponding starch products.

Huatai Intelligent Manufacturing

Henan Huatai Grain and Oil Machinery Co., Ltd. has specialized in the manufacturing of starch and grain processing equipment for over 37 years. With a 100,000-square-meter modern production facility, equipped with advanced equipment such as laser cutting machines, fully automatic welding robots, and CNC precision machining centers, we produce over 200 large-scale grain processing lines annually.

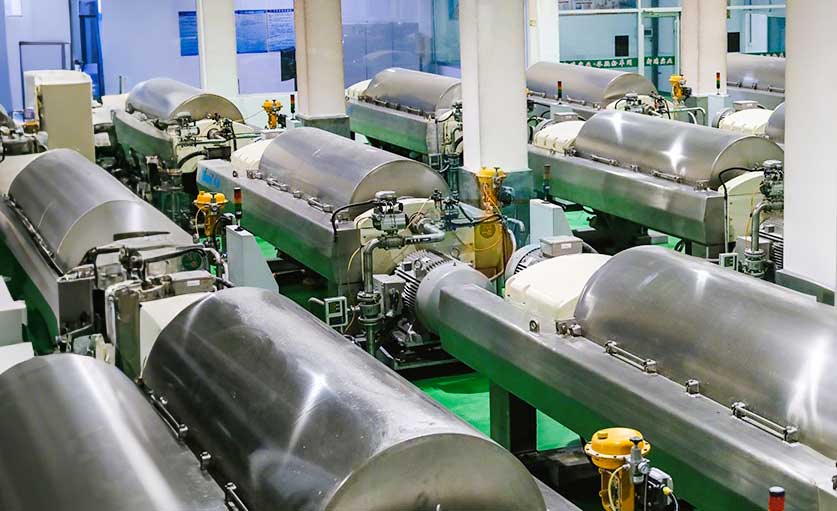

Huatai Workshop

Huatai Oil Machinery is a leading manufacturer and supplier of starch processing equipment in China. We offer affordable equipment and cost-effective starch production processes. We have implemented numerous starch processing plant projects worldwide and provide customized production solutions. We welcome inquiries from customers.

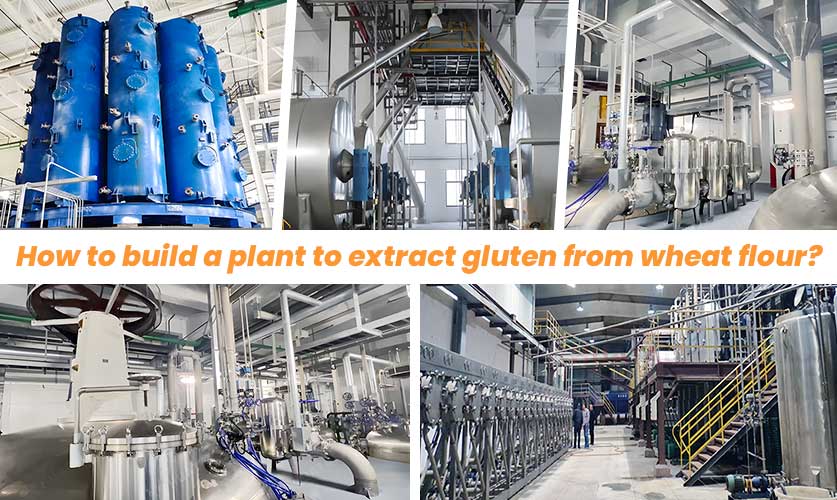

How to build a wheat starch gluten plant?

Building a wheat starch gluten plant requires a significant investment. This is because building a wheat starch gluten plant requires the following key requirements: 1. High capital requirements; 2. Government-approved land that meets the requirements; and 3. A stable supply and market for raw materials (wheat or other high-starch crops).
Based on our years of experience, we can provide you with a customized wheat starch gluten plant solution based on your starch plant’s production capacity, land area, and funding.

Please provide us with detailed information about your request to facilitate communication and provide you with a more detailed quote:

1) Is the starch raw material you wish to process wheat? If you wish to process other raw materials, please provide the type of raw material;

2) The daily tonnage of wheat or other starch raw material you wish to process; (This is very important to us; we will customize the process drawings and equipment list based on your production capacity requirements.)

We appreciate your providing as much detailed information as possible so that we can provide you with equipment quotes, flow charts, equipment configuration lists, and other services. Thanks.
